Printek Engineers printgraph

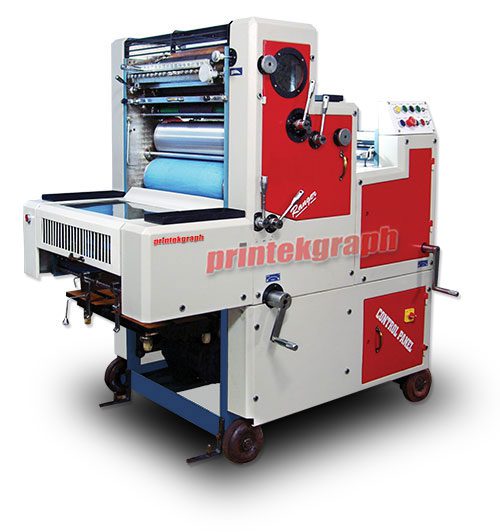

MINI OFFSET

Special Features

  • Rigid Construction & Vibration Free working
  • All cylinder are Hard Chromed Plated
  • D.C. Drive
  • Drive Gears Precision Ground for Long Life
  • Finger Tips Controls
  • Automatic Pile Table
  • High Quality printing with Perfect Registration
  • Fine Ink Feed & Controls for Highly Uniform, Ink-Film, Plate Ink.

CENTRALISED LUBRICATION SYSTEM
The Lubrication system supplies sufficient amount of oil automatically in frequent intervals as specified in the timer
to all functional point during the press operation.

AFTER SALES SERVICE
Printek printing machines are well supported by skillful and experienced persons stationed at branch offices strategically
placed at major cities all over the India. Every branch is
equipped with an expert team of experienced service engineers
who are geared to build up an indisputably strong network of customer services.





TECHNICAL SPECIFICAION

PP15 PP18 PP20 PP25 PP28 PP30 PP32 PP36
Sheet Size (Max) 10.5x15.25 14x18.5 15x20 18.5x25.5 18.5x28.5 20.5x30.5 22x32 24.5x37
Sheet Size (Min) 4.75 x 6.75 5x6.9 5x7 9x10 9x10 10x11 11x13 12x14
Printing Area (Max) 10x14 13.6x18.2 14x19.5 17.5x25 17.5x28 19.5x30 21.X31 23x36
Gripper Margin on Paper 8 mm 8 mm 9 mm 9 mm 9 mm 9 mm 9 mm 9 mm
Gripper Margin on Plate 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Plate Size 11 x16 15.5x19 15.75x20.5 20x26 20x29 22x31 24x32 26x38
Plate Thikness 0.2 mm 0.2 mm 0.2 mm 0.3 mm 0.3 mm 0.3 mm 0.3 mm 0.3 mm
Blanket Size 11x17 17.25x19.25 18.75x20.5 22x26 22x29 24x31 26x32 28.5x38
Pile Height Feeder - - 32 32 32 32 35 37
Pile Height Delivery - - 16 16 16 17 18 20
Stock Thickness (in gsm) 30-350 30-350 30-450 30-450 30-450 30-450 30-450 30-450
No. of Inking Rollers 12 12 20 20 20 20 20 20
No. of Dampening Rollers 4 5 5 5 5 5 5 5
No. of Ink form Rollers 2 2 3 3 3 3 3 3
Main Drive Motor (in HP) 1 1 1 3 3 3 3 3
Compressor pump Motor 1/2HP 1 HP 2 HP 2 HP 2 HP 2 HP 2 HP 2 HP
Speed (Max.) IPH 5000 5500 8000 8000 8000 7000 7000 7000
Floor Space 67x36 70x40 74x43 77x57 77x60 85x63 89x65 95x66
Weight (Kgs.) 850 925 1700 1900 2100 2500 3200 4000



  Modifications Reserved. Specifications not binding.
