Printek Engineers printgraph

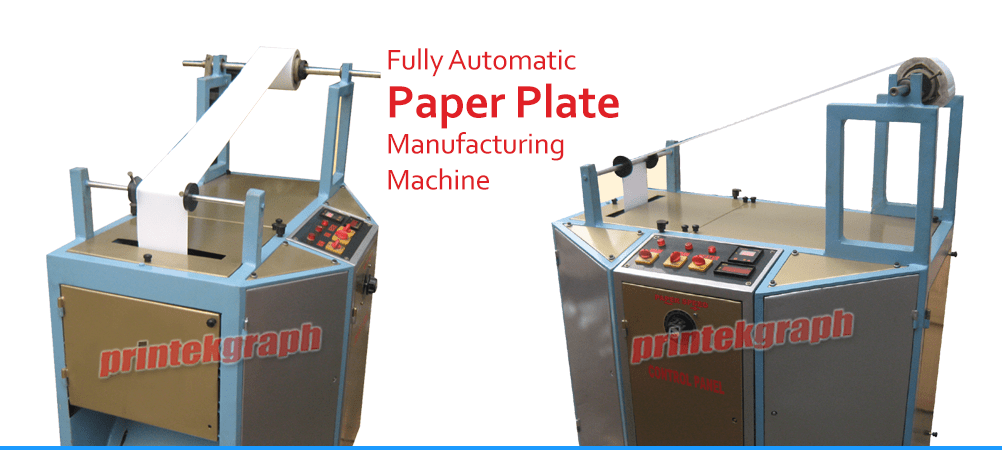

Fully Automatic Paper Plate Making Machine



Fully Automatic Paper Plate Manufacturing Machine is our new innovation, manufactured by us in our factory, well equipped with up to date manufacturing facility. All the components are built in our factory by skilled team of engineers guaranteeing consistent quality and finish. This Fully Automatic Paper Plate Manufacturing Machine can be operated easily by single person

  Special Features
  Dies can be easily changed.
  Single Operator required.
  Rigid construction and vibration free working.
  AC and DC Drive Motors.
  Single Phase Electricals.
  Finger Tip Controls.
  Counter.
  Thermostatically Controlled Heater.
  Minimum Paper wastage




  Techanical Specifiaction


Techanical Specifiaction P7 P7D P14 P14D
Maximum Plate Size 7" 7" 14" 14"
Production Capacity 30 Plates per minute 60 Plates per minute 30 Plates per minute 60 Plates per minute
Main Drive Motor 1 HP AC Drive 2 HP AC Drive 1 HP AC Drive 2 HP AC Drive
Paper Reel Motor 1/4 HP DC drive 1/2 HP DC drive 1/4 HP DC drive 1/2 HP DC drive
Heater 1 KW 2KW 1 KW 2 KW
Weight 500 Kg 800 Kg 800 Kg 1000 Kg
Dimension 4' L x 2.7' W x 4.6' H 6' L x 2.7' W x 4.6' H 4' L x 3.7' W x 4.6' H 6' L x 3.7' W x 4.6' H
Total Power Required 2 KW 4 KW 2 KW 4 KW


  Modifications Reserved. Specifications not binding.
