PROGRAMME CUTTING

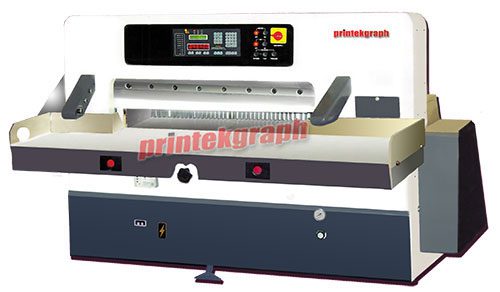

Programmatic High Speed Hydraulic 115 Fully Automatic Guillotine Machine

High Speed guillotines for paper, Board, Veneers, Plastic and mental foils and similar leaf form material.

Robust construction to withstand rugged handling and to ensure smooth operation.

Programme Feature
  • Programme storing capacity = 99
  • Cuts in each programme = 99
  • Label mode = single cut and multi cut
  • Finding of 1st free programme Size correction etc.
# Without programme and semi automatic machine are also available

Salient Features
  • Programme - The storage capacity of programme is 99 programmes and one programme capacity is 99 cuts in this machine. The accuracy of the programmes is 0.01mm or 0.001 inch. Conversion in inch and fraction is also possible.
  • Lable Mode=Single cut & Multi cut
  • Back Gauge Accuracy Control Though Grinded Guide System.
  • Frame, Tables & Knife holder of graded cast iron.
  • High grade material to withstand wear, strain & stress.
  • Air Cushion table for easy movement of heavy stock.
  • Infra -red Photo cell safety device.
  • Adjustable variable clamping pressure 300 to 4500kg.
  • Drive gear box-The worm gear drive has ground worm, need less power than any other conventional. The gears are running in oil bath.
  • Latest hydraulic power pack unit Double Pressure Cylinder.
  • Precession Cutting.
  • Lighting on cutting edge.
  • Knife is easily changeable and adjustable by single operator.
  • Extended side tables for stocking.



  Model : PK 92 PK 115
  Cutting Width : 36" (920mm) 45" (1150mm)
  Clamp Opening : 4 ½" (120mm) 5" (130mm)
  Minimum Cut
(Without False Clamp)
: 1"(25mm) 1" (25mm)
  Speed of Mechanical
Cut/Minute
: 45 45
  Blade Thickness : ½" (12.7mm) ½" (12.7mm)
  Space Occupied : 1450x2200mm 2350x2600mm
  Power Required : 7 H.P. 7 H.P.

  Specifications

Cutting width  115 cm
Feed Depth  115 cm
Clamp opening  16 cm
Front Table  70 cm
Table Height  90 cm
Smallest cut  2 cm
Clamp pressure Min   300 kg
Clamp Pressure Max  4500 kg
Cut per minute  40 - 42
Power-Main Drive  5 HP
Back Gauge   1 HP
Weight (Net)  3.5 M.T
Dimension  245 x 245 cm


20", 26", 33", 36" sizes are also availble


  Modifications Reserved. Specifications not binding.
