Punching & Creasing

Heavy duty Platen with
  • Electromagnetic clutch & break
  • Two eccentric bushes for impression adjustments
  • Dual timing device
  • Two approved Safety Guards
  • Pre-set counter
  • Direct die clamping system
  • Mirror glass finished Impression Steel Plate
  • Centrally motorized oil pump with timer
  • Feeding and collecting table

Optional
  • Hot Foil stampimng attachment with maximum 3 steps.
  • Hot Plate fitted with thermostatically controlled heater.
  • Separated drive for each rewinder.

Inside Chase size :

20"x26" 22"x32" 25"x37" 32"x42" 34"x48"
36"x60" 42"x62" 45"x67" 48"x69" 52"x83"

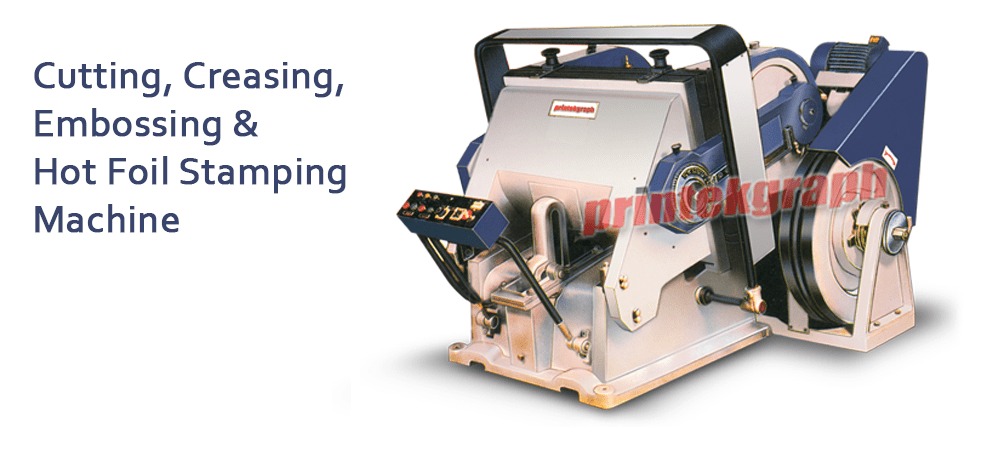

  Printekgraph Platen is designed for Die-Cutting, Embossing and Creasing job on Paper, Card Board, Corrugated Board, Fiber Board, Vinyl, Foam Rubber, Leather, Masonite, Cork Sheets, Polyurethane, Linoleum etc.

  Salient Features

  • Sturdy construction
  • Special high tension cased iron plates and frame
  • Lubricated counter pressure elements
  • Single piece jumbo size connecting arms
  • Pressure adjustable through eccentric bushes
  • Plate driven by ball bearing mounted shaft
  • Pair of high speed double helical gears
  • Hot Foil Stamping attachment with maximum 3 steps
  • Separate drive for each rewinder
  • Hot Plate fitted with thermostatically controlled Heater
  • Electromagnetic clutch and brake
  • Dwell timing device 1 - 10 seconds adjustment
  • Two approved safety guards
  • Pre-set counter
  • Helical gears made of special grade steel.
  • 3 Safety devise.
  • Mirror finished impression plate.


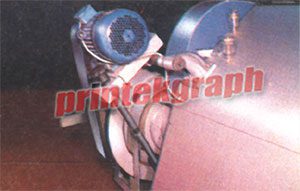

  ELECTRO -MAGNETIC CLUTCH & BRAKE

The electrical synchronization of clutch and brake
eliminates the possibility of any time overlap
between the driven and braking mechanisms.
Neither brake nor clutch requires oil on any part so
there is no danger whatever under normal
conditions of impairing efficiency resulting from
penetration of oil to the friction surfaces


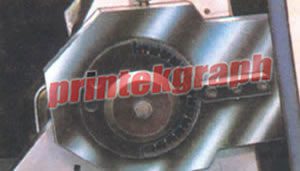

  PRESSURE ADJUSTMENT

Pressure adjustable through impression adjustment.
Independent for each side. The perfect platen
setting is achieved. The set value of impression can
be easily read on the scale


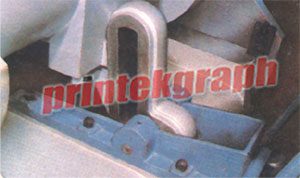

  STROKE MOVEMENT
The Silent movement of stroke is smooth, without
vibrations. The bridge cam and roller are finely
machined and finished. The materials used ensures
high performance for years

STANDARD ACCESSORIES
Two steel chases, one impression plate, stationary feed & delivery board and a complete set of Service Tools


  Technical Specifications

Inside Chase   47 x 62 cm   62 x 90 cm  77 x 105 cm  85 x 120 cm   92 x 125 cm  105 x 155 cm
 19 x 25 in   25 x 37 in   32 x 42 in  34 x 48 in   36 x 60 in  42 x 62 in
Platen Size   55 x 70 cm   72 x 100 cm  87 x 112 cm  92 x 129 cm   100 x 138 cm  114 x 165 cm
 22 x 28 in   29 x 40 in   35 x 45 in  37 x 52 in   40 x 55 in  45 x 65 in
Impression / hour 2000 1800 1500 1200 1000 1000
H.P. Required   3 H.P.   5 H.P.   7.5 H.P.   7.5 H.P.   10 H.P.   10 H.P.
Weight (App.)   2.8 ton   4.5 ton   5.5 ton   6.5 ton   7.5 ton  11.2 ton


Design & Specification are not binding due to constant changes and improvement.


  Modifications Reserved. Specifications not binding.
