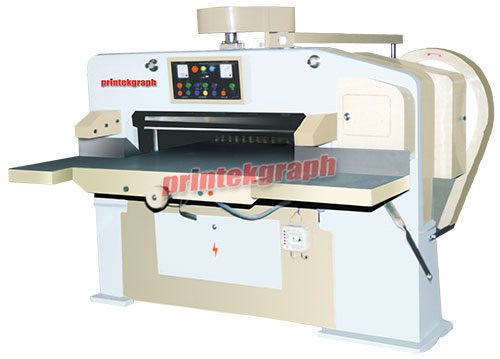

SEMI AUTOMATIC CUTTING MACHINE

Semi Automatic High Speed Paper Guillotine (Full Option)

Versatile cross less perfect paper guillotine for easy operation by single operator

Sizes - 33" 36" 42" 52" 60".

Salient Features
  • Electronic clutch & break system.
  • Motorized powerful clamping system.
  • Motorized auto measure back age system.
  • Photocell for hand safety of operation.
  • Full electric control system.
  • Drive motor is mounted on the body.
  • Fly wheel & V Belts are protected by metal guard.
  • Back gauge is adjustable so as to be parallel to the
    knife Locking device is provided on the fast threaded
    spindle to Prevent dislocation of back - gauge against
    pressure of pile.



  • Multi disc clutch transmit positive slipless drive with minimum maintenance.
  • Special Steel Plate on front of the table.
  • Knife is easily changeable as well as adjustable by eccentric levers.
  • Cross parallel grooves on the knife plate provided to avoid displacement even under heavy pressure.
  • Lubrication centralized on all moving parts & grease cups fitted at the shaft bearings.
  • Illuminated and measuring tape for easy and
    quick settings.
  • Lighting on the cutting line.
  Specifications

Model PG 840  PG 900  PG 1060
Cutting Length 840 mm [33"]  900 mm [36"]  1060 mm [42"]
Cutting Width 840 mm [33"]  900 mm [36"]  1060 mm [42"]
Clamp Opening 100 mm [4"]  113 mm [4 16"] 125 mm [25"]
Cuts per Minute [Approx.] 30 25 20
Power Requirements [H.P] 2 3 3


Additional Power for Motorised



Back Gauge [H.P]  1/2  1/2  1/2
Motorised Dab (H.P)  1/2  1/2  1/2
Floor Space  1650 x 1650 mm   1950 x 1950mm   2150 x 2150mm
 66" x 66"   78" x 78"   86" x 86"
Standard Accessories  2 Knives, Cutting Stick, Oil Can & Tools etc.


Hydraulic Paper Cutting Machine is also available.

  Modifications Reserved. Specifications not binding.
