For Bar Rotary Cutting & Creasing Machine
Technical Data
| Size |
Output |
H.P |
Dimensions |
Heating Load |
App.Weight |
| 65" |
300 |
1 |
82" x 60" x 44" |
3" / 62" |
1800 |
| 75" |
300 |
2 |
92" x 60" x 44" |
3" / 72" |
2200 |
| 85" |
300 |
2 |
104" x 60" x 44" |
3" / 82" |
2700 |
| |
|
|
|
|
|
The machine is designed for cutting and creasing the Corrugated board simeutaneousiy. Easy system to set the creasing and cutting dies. Clutch is provided to set the crease on board. Best quality steel properly tempered incorporated in the machine.Two guides are provided on the table to support
the sheet for straight feeding. |
|
 |
| |
|
|
|
|
| |

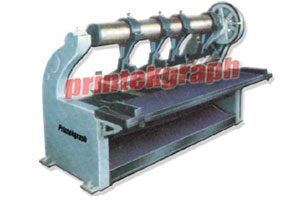

Eccentric Slotter
Technical Data
| Size |
Strokes /Min |
H.P |
Dimensions |
App. Weight in Kg |
| 65" |
25-30 |
2 |
90" x 65" x 62" |
2500 |
| 75" |
25-30 |
2 |
96" x 65" x 62" |
2800 |
| 85" |
25-30 |
3 |
110" x 65" x 62" |
3200 |
| |
|
|
|
|
The machines is provided with three slotting cutters and one corner cutter.
The dies are mounted on an eccentric shaft which causes them to move in
an arc so that the board is slotted in a shearing manner. The dies can be moved and slot depth adjusted easily. |
|
 |
| |
|
|
|
|
| |

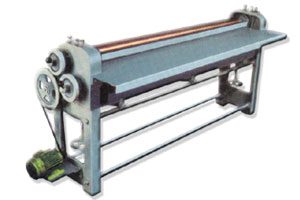

Sheet Pasting Machine
Technical Data
| Size |
Speed/ Re /M |
H.P |
Dimensions |
App. Weight in Kg |
| 65" |
200 |
0.5 |
100" x 30" x 42" |
600 |
| 75" |
200 |
0.5 |
108" x 30" x 42" |
800 |
| 85" |
200 |
0.5 |
120" x 30" x 42" |
900 |
| |
|
|
|
|
This machine finds its use in the application of glue on the tips of the
Corrugated surface of
paper or board. The gap between the rolls is adjustable.
The glue tray can be raised or lowered
to adjust the glue level. |
|
 |
| |
|
|
|
|
| |
Reel Sheeting Machine
Technical Data
| Size |
Cutting Length |
Output |
H.P |
Dimensions |
App. Weight Kgs |
| 52" |
20'x90" |
20/60 |
3 |
72"x50"x55" |
1750 |
| 62" |
20"x90" |
20/60 |
3 |
84"x50"x55" |
2000 |
| |
|
|
|
|
|
The machine is designed for sharp cutting and fast production of single face
paper corrugated board without damaging the flutes. Length of the sheet
can be adjusted. |
|
 |
| |
|
|
|
|
| |

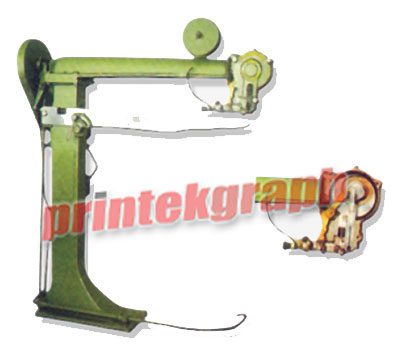

| Box Stiching Machine |
|

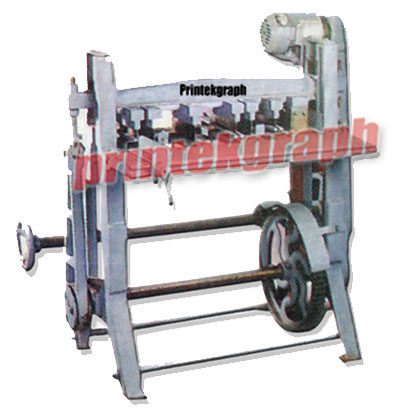

Partition Slotting Machine |
| |
|
|
 |
|
 |
Models Available: Straight /Angular / Bottom Corner &
Continuous
Arm Lengths: 20", 36", 48" & 60" |
|
Technical Data |
The machines are sturdy, compact in design and simple in operation and maintenance. The components are made of highest standard of appropriate metals and given precise Heat treatment. The machines are perfectly accurate, the parts are interchangeable. The Machines operate at speed of 300 stitches per minute. |
|
| Size |
: |
35" |
| Strokes / Win |
: |
40-50 |
| H.P. |
: |
1 |
| Dimensions |
: |
40" x 30" x 42" |
| App. Weight Kgs |
: |
600 |
The machine is capable of slotting a number of sheets at a time. Adjustable slot dies are mounted on a support. The machine has
simple design. |
|
|
| |
|
|
| |
